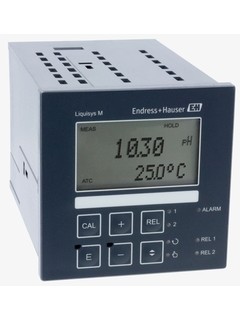

Endress Hauser PH/ORP Transmitter Liquisys CPM223 With Hart Communication 0.775 Kilogram

Name: Endress Hauser PHORP Transmitter Liquisys CPM223 With Hart Communication 0775 Kilogram
Brand: Endress+Hauser
Price: 1 USD

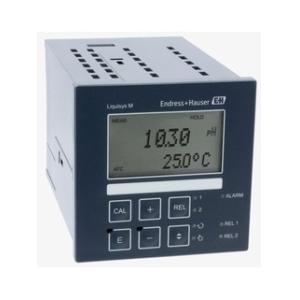

Cheap Endress Hauser PH/ORP Transmitter Liquisys CPM223 With Hart Communication 0.775 Kilogram for sale

Brand Name : Endress+Hauser

Model Number : CPM223-PR0005

Certification : CE

Place of Origin : Germany/China

MOQ : 1pc

Price : negotiable

Payment Terms : T/T

Supply Ability : 100pcs per month

Delivery Time : 12-14weeks

Packaging Details : standard carton packing

Input : One-channel-transmitter

Output / communication : 0/4-20 mA, Hart, Profibus

Ingress protection : IP54

Sensor Input; Software : PH (glass) / ORP; basic version

Power Supply : 230VAC

Net weight : 0.775 Kilogram

Contact Now

Endress+HauserpH/ORP transmitter Liquisys CPM223

Liquisys CPM223 is a standard pH/ORP transmitter for all analog and digital Memosens sensors. It improves your operational safety thanks to continuous plausibility, process and sensor checks. Select from numerous hardware and software modules, such as relays or fieldbus communication, to adapt it exactly to your measuring task. This modularity also allows you to upgrade the transmitter at any time. A simple menu and two-point calibration make configuration and operation fast and easy.

The Liquisys CPM223 transmitter works with all pH/ORP glass and ISFET sensors in non-hazardous areas, for example in these industries and their utilities:

Chemicals
Food & Beverages
Power & Energy
Water & Wastewater
Primaries & Metal

Liquisys CPM223 features the following protocols and interfaces:

Endress Hauser PH/ORP Transmitter Liquisys CPM223 With Hart Communication 0.775 Kilogram

0/4...20 mA
HART
PROFIBUS DP
PROFIBUS PA

Measuring principle	Potentiometric
Application	Water, waste water, process
Characteristic	4-wire transmitter with a two-line display
Design	pH/ORP transmitter in a panel housing (96x96 mm)
Material	panel housing
Dimension	96 mm x 96 mm x 146 mm(built in depth) 3.74x3.74x5.61 inch (built in depth)
Temperature sensor	Display and current output
Ex certification	No
Ingress protection	IP54
Input	One-channel-transmitter
Output / communication	0/4-20 mA, Hart, Profibus.
Additional certifications	CSA Gen. Purpose
